LGMC HD22 Dozer With Cummins NT855-C280S10 Engine Sprayed Beam Suspended Structure Of Equalizer
Product Description:
· Place of Origin: China
· Model Number: HD22
· Name: Construction Bulldozer
· Warranty: 3 Months
· Delivery: 10-15 Working Days
· Stock quantity: available
Packaging & Delivery :
Packaging Details: Container
Port: QINGDAO
PAYMENT: 30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.
Bulldozer is a kind of multi-purpose self-moving earthwork construction machinery, which can shovel and transport soil. For example, in the road construction,bulldozer can complete the treatment of subgrade foundation, the lateral filling height of embankment is not more than 1m, the subgrade excavation and filling project along the road center line to shovel and transport soil, and the subgrade with half embankment and half cutting along the mountain. In addition, bulldozer can also be used to level the site, pile up loose materials, remove obstacles in the operating area, and so on.
| Overall | Dimension | 5460×3725×3395 mm |
| Operating Weight | 23500 kg |
| ENGINE | Model | Cummins NT855-C280S10 |
| Type | Water-cooled, In-line, overhead valve direct injection, turbocharged diesel |
| Number of Cylinders | 6 |
| Bore × Stroke | Φ139.7×152.4 mm |
| Piston Displacement | 14.01 L |
| Rated Power | 175 KW (238HP) @1800 rpm |
| ax Torque | 1030 N·m @1300 rpm |
| Fuel Consumption | 205 g/kW·h |
| TRANSMISSION | Torque Converter | 3-element, 1 stage, 1 phase |
| Transmission | Planetary gear type, power-shift, forced lubrication |
| Central Drive Shaft | Spiral bevel gear, single-stage speed reduction, splash lubrication |
| Steering clutch | Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control |
| Steering brake | Wet type,floating band structure,foot brake with hydraulic booster |
| Final drive | 2-stage speed reduction of spur gear, splash lubrication |
| TRAVEL SPEED | Gear | 1st | 2nd | 3rd |
| Forward | 0~3.6 km/h | 0~6.5 km/h | 0~11.2 km/h |
| Reverse | 0~4.3 km/h | 0~7.7 km/h | 0~13.2 km/h |
UNDERCARRIAGE SYSTEM | Type | Sprayed beam, suspended structure of equalizer |
| No. of Carrier Rollers | 2 each side |
| No. of Track Rollers | 6 each side |
| No. of Track Shoes | 38 each side |
| Track Shoe type | Single Grouser |
| Width of Track shoe | 560 mm |
| Pitch | 216 mm |
| Track Gauge | 2000 mm |
| Ground Pressure | 0.077 Mpa |
| HYDRAULIC SYSTEM | Max Pressure | 14 Mpa |
| Pump Type | Gear Pump |
| Displacement | 262 L/Min |
| Bore of Working Cylinder | 120 mm × 2 |
BLADE | Blade Type | Straight-tilt Blade | Angle Blade | Semi-U-blade |
| Blade Capacity | 6.4 m³ | 4.7 m³ | 7.5 m³ |
| Blade Width | 3725mm | 4365 mm | 3725 mm |
| Blade Height | 1315 mm | 1055 mm | 1374 mm |
| Max Drop Below Ground | 538 mm | 535 mm | 540 mm |
| MaxTilt Adjustment | >735 mm | >500 mm | >755 mm |
| THREE SHANK RIPPER | Max digging depth | 666 mm |
| Max lift above ground | 555 mm |
| Weight of 3-shank ripper | 2495 kg |
| SINGLE SHANK RIPPER | Max digging depth | 695 mm |
| Max lift above ground | 515 mm |
| Weight of 1-shank ripper | 2453 kg |
Our advantages :
1. We can help buyers design specific products or produce products according to buyers' design.
2. Small order acceptable.
3. Competitive price be offered.
4. Inquiry or question be answered within 12 hours.
5. Best possible after-sales service.
6. We can print logo according to buyers' requirement.
7. Stock an extensive range of spare parts.
8. Favourable geographical location.
9. Flexible pricing, offers discount and deferred payment for wholesale buyers.
10. Timely delivery.
FAQ:
Q1. Could you custom products?
A: We can manufacture it according to your drawings or samples.
Q2. What's your payment terms.
A: By T/T or Western Union, 100% in advance. ( large orders can be negociated)
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: 1-3 working days in general, and 7-10 days for large orders.
Q5. How can you guarantee the quality?
A: One year's warranty against B/L date.If You meet with quality problem, we promise to responsible for it.
Q6: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
Product Tags:
|
|

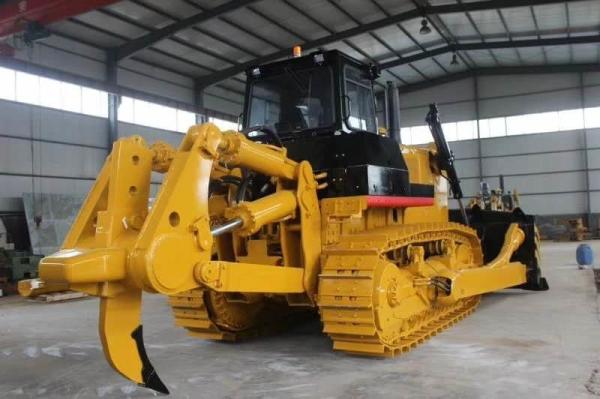

HD22 238HP Construction Bulldozer Road Building Equipment Images
|
